Robot camera : 4G Intelligent AI smart PTZ camera
Maximum load of Robot chassis : 50KG
Robot Tire : Rubber track (with steel core) belt width 100mm
Robot walk : Wireless remote control, control distance up to 300m
Robot Drive motor : 48V 800W Dual motor power
Brand Name : OKAF
Model Number : OK-RM01LD
Certification : CE/ROHS
Place of Origin : China
MOQ : 1 unit
Price : Negotiated
Payment Terms : T/T, Western Union,
Delivery Time : 15~25 working days
Packaging Details : Wood box
Robot Chassis : Robot Tank Chassis / Tracked Chassis Robot
Robot Climbing angle : ≤30°
Robot chassis dimension : 1050*800*450mm







|
PTZ Daylight camera
|
Resolution
|
1920×1080P
|
|
Frame rate
|
25/30 fps
|
|
|
Audio and video compression
|
H.264/H.265
|
|
|
Optical zoom
|
23x optical zoom
|
|
|
Rotation speed
|
Pan speed: 120°/s, Tilt speed: 60°/S
|
|
|
Rotation range
|
Pan range: 360°, Tilt range: +90°~-90°
|
|
|
Night vision
|
IR night vision 100m
|
|
|
AI Box
|
Network Interface
|
RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
|
|
AI function
|
Supports face detection, face recognition, helmet detection, reflective clothing detection, smoking detection, area intrusion
detection, etc. |
|
|
Audio Mode
|
External active microphone or linear input, linear output
|
|
|
Network Protocol
|
IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP
|
|
|
Dual stream
|
Support
|
|
|
Video input
|
4 way IP 1080P video,Aviation connector interface
|
|
|
Video output
|
1 way HDMI output
|
|
|
Preview Features
|
Single channel, 4-screen splicing preview, support manual/event-triggered full-screen display function
|
|
|
Video resolution
|
Support 1080P,720P,D1,HD1, CIF optional, Supports up to 4 channels of 1080P.
|
|
|
Audio Input
|
4 way,Aviation connector interface
|
|
|
Audio output
|
1 way
|
|
|
Compression format
|
G.711 compression format, rate 8KB/s
|
|
|
Alarm output
|
2-way switch output, linked to sound and light alarm, oil and power failure, etc.
|
|
|
Platform access
|
Support dual-platform viewing
|
|
|
GB28181, OKAF dynamic evidence collection system platform, mobile monitoring AI management platform
|
||
|
Wireless transmission
|
4G/5G high-speed transmission, ultra-high speed, ultra-low latency, ultra-large connection
|
|
|
Position
|
Supports built-in GPS / BD module, can be reported to the departmental standard platform
|
|
|
Storage
|
Maximum support TF card 512G
|
|
|
Robot chassis
|
Dimension
|
1050*800*450mm
|
|
Weight
|
80KG
|
|
|
Maximum load
|
<50kg
|
|
|
Drive motor
|
48V 800W Dual motor power
|
|
|
Battery
|
Lithium battery DC48V 40Ah, protect 100A
|
|
|
Running time
|
2 hours
|
|
|
Climbing angle
|
≤30°
|
|
|
Tire
|
Rubber track (with steel core) belt width 100mm
|
|
|
Control mode
|
Wireless remote control, control distance up to 300m
|
|
|
Working temperature
|
−20℃~+60℃
|
|
|
Protection grade
|
IP65
|
|
|

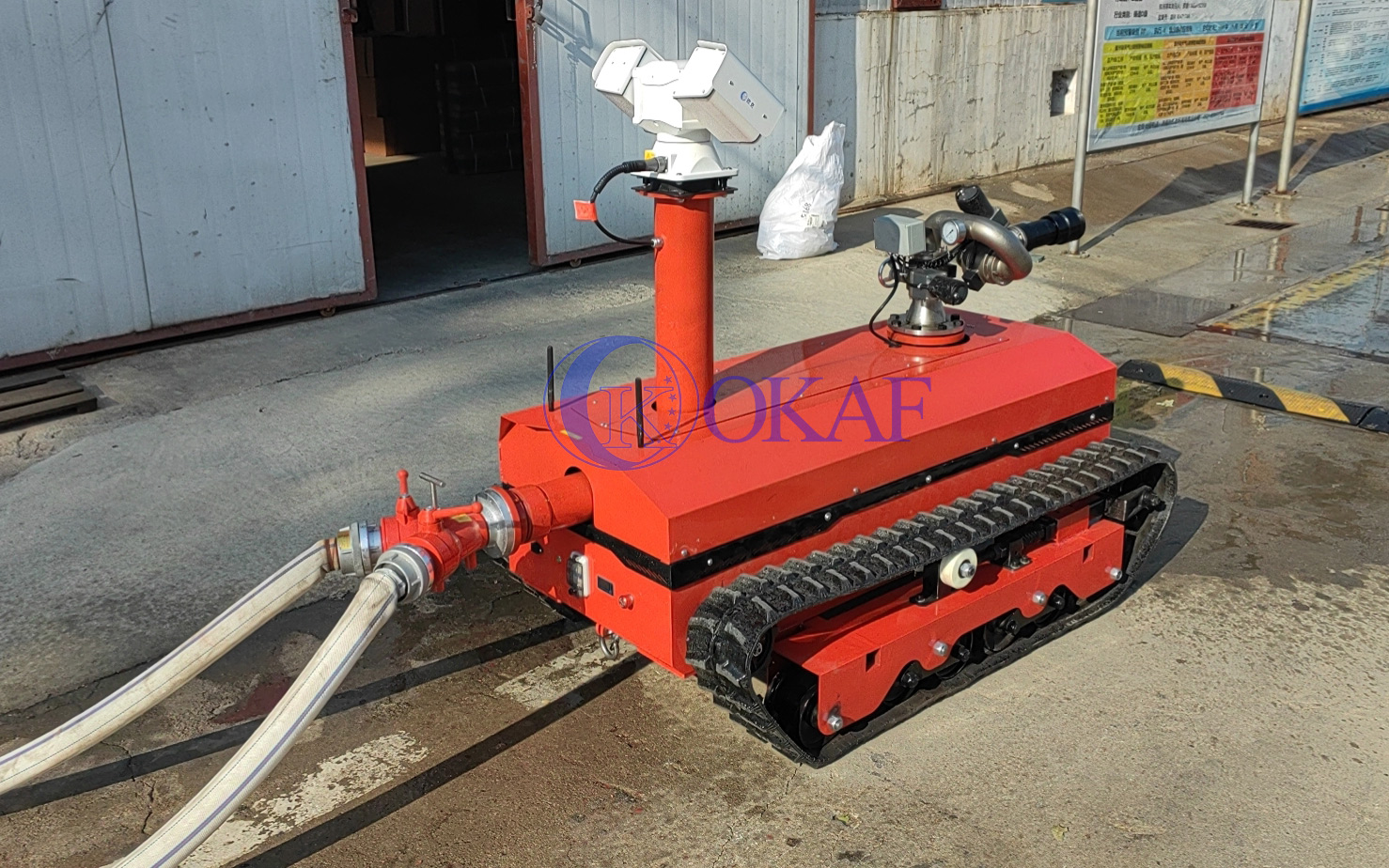

High-Performance All-Terrain Robot Heavy-Duty Industrial Robotics Smart Mobility Solution Tracked Robot Images |
